Execution Engines

An execution engine is a technology/library used by SDLB to transform data. SDLB supports different execution engines and is able to combine different execution engines in the same data pipeline / job. The data structure used to transport data between DataObjects and Actions is called a SubFeed. Each Execution Engine has Subfeeds, Actions and Dataobjects associated with it.

Currently SDLB supports the following execution engines:

CategoryExecution EngineSubFeed NameEngine ConnectionDescriptionSupported ActionsSupported DataObjects
Java-Byte-StreamFile EngineFileSubFeed-Transfer Byte-Streams without further knowledge about their content, optionally transformed by a file transformerFileTransferAction, CustomFileActionall HadoopFileDataObjects, WebserviceFileDataObject, SFtpFileRefDataObject
Generic DataFrame APISpark Engine (sdl-spark)SparkSubFeedSparkClassicConnectionTransform data with Spark DataFrame API in a Spark session running inside the SDLB processCopyAction, CustomDataFrameAction, UpsertAction, HistorizeAction, MLflowTrainAction, MLflowPredictActionall Hadoop/SparkFileDataObjects (Csv, Json, Parquet, Avro, Xml, Excel, RawFile, ...), AccessTableDataObject, AirbyteDataObject, BigQueryTableDataObject, DebeziumCdcDataObject, DeltaLakeTableDataObject, IcebergTableDataObject, JdbcTableDataObject, JdbcViewDataObject (read only), KafkaTopicDataObject, ODataDataObject, OpenApiDataObject, SnowflakeTableDataObject, DataObjectsExporterDataObject, ActionsExporterDataObject, PKViolatorsDataObject
Generic DataFrame APISpark Connect Engine (sdl-sparkconnect)SparkConnectSubFeedSparkConnectConnectionTransform data with the Spark DataFrame API on a remote Spark Connect server, without a Spark session inside the SDLB processCopyAction, CustomDataFrameAction, UpsertAction, HistorizeActionSparkConnectTableDataObject, DeltaLakeTableDataObject, IcebergTableDataObject
Generic DataFrame APISQL Engine (sdl-sql)SQLSubFeedJdbcConnectionRender the transformations as one SQL statement with SQLGlot and execute it in the database (ELT), the data never leaves the databaseCopyAction, CustomDataFrameActionJdbcTableDataObject, JdbcViewDataObject
Generic DataFrame APISnowflake-Snowpark Engine (sdl-snowflake)SnowparkSubFeedSnowflakeConnectionTransform data within Snowflake with Snowpark DataFrame APICopyAction, CustomDataFrameActionSnowflakeTableDataObject
Generic DataFrame APIPlain Scala Engine (sdl-core)ScalaSubFeedScalaConnectionLightweight engine without Spark, processing rows in memory, used for unit tests and as expression evaluator without SparkCopyAction, CustomDataFrameAction, UpsertAction, HistorizeActionno DataObjects of its own
ParameterParameter EngineParameterSubFeed-Coordinate work happening outside of SDLB and pass on key/values about it, e.g. script results or the information about an ML training runCustomScriptAction, and the additional inputs/outputs of a DataFrame Action such as MLflowTrainActionall DataObjects

Engine independent DataObjects like DeltaLakeTableDataObject, IcebergTableDataObject, JdbcTableDataObject and JdbcViewDataObject are defined in sdl-core and implemented per engine by the corresponding module. They support an engine only if its module is on the classpath, e.g. DeltaLakeTableDataObject needs sdl-deltalake for the Spark engine and sdl-sparkconnect for the Spark Connect engine.

Engine connections​

An Action running with the "Generic DataFrame API" needs an engine connection, e.g. a Connection implementing the EngineConnection trait. It tells SDLB which DataFrame engine to use and holds the session configuration for it.

Every such Action selects its engine connection through the attribute engineConnectionId. If it is not set, the connection with id default-engine is used, so a single connection is enough for most jobs:

connections {
  default-engine {
    type = SparkClassicConnection
    master = "local[*]"
    sparkOptions {
      "spark.sql.shuffle.partitions" = "8"
    }
  }
}

Leave master unset to attach to an existing Spark session provided by the environment, e.g. Databricks, EMR or spark-submit. Set it (e.g. local[*], yarn) to let SDLB create the session itself. The id default-engine can be changed with the SDLB parameter defaultEngineConnectionId, e.g. global.environment.defaultEngineConnectionId = my-engine, the java property sdl.defaultEngineConnectionId or the environment variable SDL_DEFAULT_ENGINE_CONNECTION_ID.

Switching the whole job to another engine is a matter of changing the type of that connection, see Spark Connect Engine below. Use engineConnectionId on an Action to deviate from the default, e.g. to run one Action against a different Spark cluster than the rest of the job.

info

There is no implicit default: if no engine connection is configured, DataFrame Actions fail with default-engine not found in instance registry.

Beside SparkClassicConnection and SparkConnectConnection there is JdbcConnection, the engine connection of the SQL engine, SnowflakeConnection, the engine connection of the Snowpark engine, and ScalaConnection, a lightweight Spark-free engine working on ScalaSubFeed. The latter is currently used for unit tests and small pipelines and has no DataObjects of its own, so it is not covered further here.

Spark Connect Engine​

Spark Connect decouples the client from the Spark cluster: the client builds an unresolved logical plan and sends it to a Spark Connect server, which does all the work. With the Spark Connect engine, SDLB is a thin client. It no longer needs to be a Spark application itself, which means:

  • no Spark session, no Spark driver and no cluster dependencies in the SDLB process, so SDLB starts fast and stays small,
  • the SDLB job and the Spark cluster can be upgraded and scaled independently,
  • SDLB can run wherever a JVM runs, e.g. as a small container or a serverless function, and still process data on a large cluster.

Configure it as engine connection with the remote URL of the Spark Connect server:

connections {
  default-engine {
    type = SparkConnectConnection
    url = "sc://spark-connect-server:15002"
  }
}

Additional parameters like tokens can be appended according to the Spark Connect connection string spec, e.g. sc://host:port/;token=ABCDEFG;user_id=user. Options for the remote session can be set with sparkOptions. Operations are tagged with app name, Action id and run id on the server side, so you can trace them back to the SDLB job in the Spark UI.

DataObjects​

SparkConnectTableDataObject provides access to tables of the catalog of the remote server through the normal Spark Table API:

dataObjects {
  int-airports {
    type = SparkConnectTableDataObject
    connectionId = default-engine
    table {
      db = "default"
      name = "int_airports"
      primaryKey = [ident]
    }
  }
}

It is a transactional table DataObject supporting partitions, schema evolution and SDLSaveMode.Merge, so all four DataFrame Actions can be used with it, including UpsertAction and HistorizeAction. Note that merge and schema evolution need a table format supporting them on the server side, e.g. delta or iceberg. Use format to choose the format when the table is created.

DeltaLakeTableDataObject and IcebergTableDataObject also work with the Spark Connect engine. They live in sdl-core and delegate to engine-specific implementations discovered on the classpath, so the same DataObject configuration runs on classic Spark or Spark Connect depending on the engine connection. Everything is done through SQL and the table format's own metadata tables and stored procedures, without the Delta or Iceberg Java API.

Limitations​

The Spark Connect client has no Hadoop FileSystem access to the data - all data access happens through spark.read/spark.write on the server side. Therefore:

  • no file based DataFrame DataObjects, e.g. CsvFileDataObject or ParquetFileDataObject: reading files into a DataFrame is implemented for classic Spark only. Data must be reachable through the catalog of the remote server. Byte-stream file handling with the File Engine still works, as it needs no Spark session - only CustomFileAction is unavailable, because it distributes work on Spark executors.
  • table maintenance which needs the filesystem is skipped: an existing path is neither registered nor converted to Delta/Iceberg format, a table with a missing path is not dropped, and path on DeltaLakeTableDataObject is handled server-side only.
  • no Hadoop path statistics and no column statistics in getStats.
  • no Spark stage metrics, as there is no QueryExecutionListener on the client side. Metrics come from the table format's operation metrics instead, e.g. Delta or Iceberg snapshot metrics.
  • no user defined functions registered from the SDLB configuration, as SparkConnectConnection has no sparkUDFs/pythonUDFs. Register them on the server instead.
  • transformers must be engine independent: use SQLDfTransformer/SQLDfsTransformer or the ScalaClassGenericDf(s)Transformer, see Transformations. Transformers typed to classic Spark, e.g. ScalaClassSparkDfTransformer or the Python transformers, are not available.
caution

A classic Spark session and a Spark Connect session cannot coexist in the same JVM, and classic spark-sql must not be on the classpath of a Spark Connect job - the Spark Connect client (spark-connect-client-jvm) provides the same class names. Build a job for one of the two engines: sdl-spark for classic Spark, sdl-sparkconnect for Spark Connect. Consequently a single SDLB job cannot combine the Spark and the Spark Connect engine.

SQL Engine​

The SQL engine of module sdl-sql does not process data itself: it builds the transformations of an Action as an SQLGlot query, lets SQLGlot optimize it, and renders it as one SQL statement in the dialect of the target database (ELT). The statement is executed by the database with INSERT INTO ... SELECT or a merge statement, so the data never leaves the database. As SQLGlot translates between dialects, SQL transformers can be written in Spark SQL and executed on e.g. Postgres, SQL Server, Oracle, Snowflake or Databricks.

An Action uses the SQL engine if its engineConnectionId references a JdbcConnection. All its inputs and outputs must then be JdbcTableDataObjects or JdbcViewDataObjects of this connection:

connections {
  dwh {
    type = JdbcConnection
    url = "jdbc:postgresql://localhost:5432/dwh"
    driver = org.postgresql.Driver
    # dialect = postgres  # SQLGlot dialect of the database, derived from the url by default
  }
}
actions {
  load-customers {
    type = CopyAction
    inputId = stg-customers
    outputId = int-customers
    engineConnectionId = dwh
    transformers = [{
      type = SQLDfTransformer
      code = "select id, upper(name) as name, nvl(city, 'unknown') as city from %{inputViewName}"
      # sqlDialect = spark  # SQLGlot dialect of the SQL code, default is spark
    }]
  }
}

Supported features:

  • save modes Overwrite (delete and insert in one transaction, also for virtual partitions), Append and Merge
  • incremental output with DataObjectStateIncrementalMode
  • schema evolution (allowSchemaEvolution = true): new columns are added, data types are widened and columns missing in the DataFrame are made nullable, with ALTER TABLE statements rendered for the dialect of the database
  • views and materialized views with JdbcViewDataObject: writing a DataFrame to it creates or replaces the view with the query of the DataFrame, see Schema for deploying views. A view is read like a table by all engines of JdbcTableDataObject, e.g. by a Spark Action in the same feed.
  • column lineage with the lineage module of SQLGlot
  • identifiers are resolved case-insensitively, like in Spark, and rendered with the spelling of the database

Limitations:

  • only transformers which are engine independent can be used, e.g. SQLDfTransformer, SQLDfsTransformer and the predefined transformers. Expressions given as string, e.g. filters of execution modes, are Spark SQL.
  • data types of written DataFrames are not validated against the table, as the types inferred by SQLGlot are not exact.
  • not implemented: UDFs and some functions, e.g. hash and from_json.

SQLGlot is a Python library, embedded into the JVM with jep. The Python environment needs the packages sqlglot and jep, see sdl-sql/pyproject.toml, and is found through the environment variable SDL_PYTHON_PATH (or java property sdl.pythonPath), otherwise python3 on the PATH is used. jep is compiled against the local JDK on installation, so JAVA_HOME must be set:

cd sdl-sql
uv sync
export SDL_PYTHON_PATH=$PWD/.venv/bin/python

See the README of sdl-sql for details about materialized views, grants, identifier handling and the architecture of the engine.

Connecting different execution engines​

In order to build a data pipeline using different execution engines, you need a DataObject that supports both execution engines as interface, so that one execution engine can write the data in the DataObject and the other one can read from it.

  • from FileSubFeed to SparkSubFeed (and vice-versa): any Hadoop/SparkFileDataObject like ParquetFileDataObject
  • from SparkSubFeed to SnowparkSubFeed (and vice-versa): SnowflakeTableDataObject
  • from SparkSubFeed to SQLSubFeed (and vice-versa): JdbcTableDataObject, and JdbcViewDataObject in direction SQLSubFeed to SparkSubFeed
  • from ParameterSubFeed to any (and vice-versa): every DataObject is suitable

SparkSubFeed and SparkConnectSubFeed are the exception: they cannot be combined in the same job at all, as their sessions cannot coexist in one JVM, see above. Hand data over through a table read by a separate job instead.

Schema propagation​

Note that a schema can only be propagated within a data pipeline for consecutive actions running with an execution engine of category "Generic DataFrame API". Whenever such an Action has an input from a different category, the schema is read again from the DataObject.

SDLB is able to convert schemas between different execution engines of category "Generic DataFrame API", e.g. Spark and Snowpark, through their engine neutral Json representation. Spark type names are used for simple types. A schema which can not be converted, e.g. because of a type without Spark equivalent, is read again from the DataObject by the next Action.

Determining execution engine to use in "Generic DataFrame API" Actions​

A "Generic DataFrame API" Action can run with different execution engines like Spark or Spark Connect. It determines the execution engine to use in Init-phase as follows:

  1. intersect the SubFeed types supported by all inputs and all outputs. If there is no common type an exception is thrown.
  2. keep only the SubFeed type of the Action's engine connection. If nothing is left an exception is thrown.
  3. if the transformers are typed to a specific engine, that type is used and must be part of the remaining types.
  4. otherwise the first remaining type in the order of the inputs is chosen.

To check which execution engine was chosen, look for logs like the following:

INFO CustomDataFrameAction - (Action~...) selected subFeedType SparkSubFeed

Execution Engines vs Execution Environments​

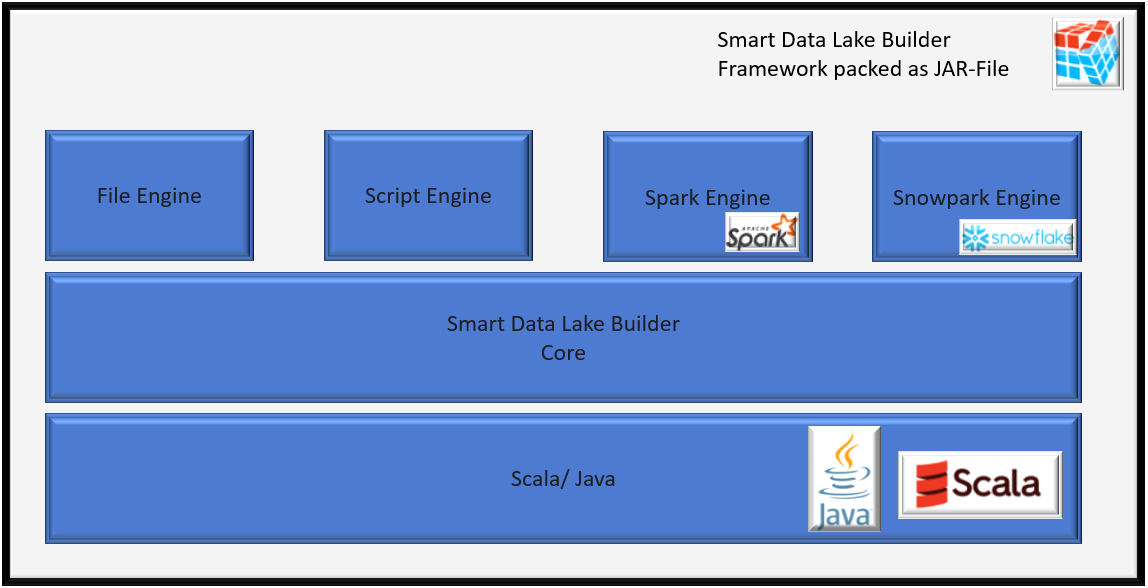

As mentioned in Architecture, SDLB is first and foremost a Java (Scala) application. It can run in any Execution Environment where you can install a JVM, executing Actions with any of its Execution Engines. SDLB chooses the Execution Engines for your data pipeline independently from the Execution Environment that SDLB lives in. For example: Let's say you run SDLB in a distributed fashion on a Spark Cluster using spark-submit. If one of your Actions only has SnowflakeTableDataObjects as input and output, and its engineConnectionId references their SnowflakeConnection, SDLB will run it using the Snowpark-Engine. In practice, this means that SDLB will connect to the Snowflake Environment from inside your Spark-Cluster and then execute your Action from there using Snowpark's Java/Scala Library.

Of course, the Execution Environment you have influences the DataObjects that you have at your disposal: for instance, if you want to connect to Snowflake, you need a Snowflake account and be able to connect to Snowflake. But the Execution Environment does not determine the Execution Engines SDLB will use - your DataObjects, Actions, Transformations and engine connections do. img.png

The Spark Connect engine loosens this coupling further: with it SDLB is not a Spark application anymore, so the Execution Environment no longer needs a Spark installation at all. A small container running the SDLB job is enough, while the data is processed on the Spark Connect server.
